Precision Redefined: Innovations in PolyCut™ Plus Microtome Blades

Histopathology relies on the precision of tissue sectioning to deliver accurate diagnoses. Microtome blades are the unsung heroes behind this process, and as the demand for diagnostic accuracy and efficiency continues to increase, so does the need for innovation in blade design.

StatLab’s PolyCut Plus™ Microtome Blades meet this demand with a MicroCoat layering process that offers increased durability and sharpness while ensuring clear and consistent sectioning. This unique proprietary coating is available in both low-profile and high-profile options, and PolyCut Plus is exclusive to StatLab in the U.S. market.

Design

Designed specifically for StatLab, PolyCut Plus blades are constructed with MicroCoat® enrichment technology crafted from medical-grade stainless steel. Each blade is overlaid with a series of custom-formulated materials to ensure a truly innovative product with a proprietary coating that is free from nicks and provides exceptional uniform full coverage.

PolyCut Plus blades are visually superior to other blades when magnified, clearly showing a smoother surface that supports consistent sectioning. (See the visual blade comparison section.)

Uniformity in blade edge angles is essential for producing tissue sections free from compression, chatter, or tearing. During manufacturing, side-to-side balance is critical and must maintain tight tolerances to ensure uniformity. Without this precision, a 35° blade angle can vary from 35° to 38°, negatively affecting sectioning efficiency and tissue quality.

PolyCut Plus blades are manufactured with a side-to-side angle tolerance within ¼°, ensuring blade angles remain tightly controlled between 34° and 35°. This increased uniformity minimizes defects and improves tissue section quality.

Blade angle tolerance, precise honing, and the need for a uniform, symmetrical coating are all critical aspects of the manufacturing process for every blade. A robust validation and QC process is the final piece of the puzzle, separating an average blade from an extraordinary one.

PolyCut Plus Blade Durability Test Methodology

Environmental and Equipment Conditions
• Room temperature: 68°F
• Microtome: Thermo Scientific HM 355S
• Paraffin: Paraplast Xtra
• Block cooling: Minimum of 10 minutes
• High profile microtome blade: PolyCut Plus, CUT5200
• Water bath temperature: 43°C
• Section thickness: 5μm
• Sectioning speed: 100 rpm
• Low profile microtome blade: PolyCut Plus, CUT5100

Evaluation Process

1. Initial Assessment (First 25 Cuts): Each blade was evaluated on a 0-10 scale for the following performance criteria.
   • Ease of starting a ribbon
   • Break-in period
   • Jump or chatter during cutting
   • Ribboning quality
   • Section clarity from water bath to slide
   • Number of knife lines

2. Ongoing performance monitoring:
   • Continued cutting 25 sections per block
   • Recorded performance results at every 50-section interval, starting at the 50th section.

3. Test termination criteria: Section continued until either blade performance declined to unacceptable levels of performance, or a maximum of 500 sections is reached.

Unacceptable performance:
• Excessive compression
• Squeaking causing horizontal chatter marks
• Excessive streaking or knife lines
• Other defects that affect suitable analysis of biopsy

Durability

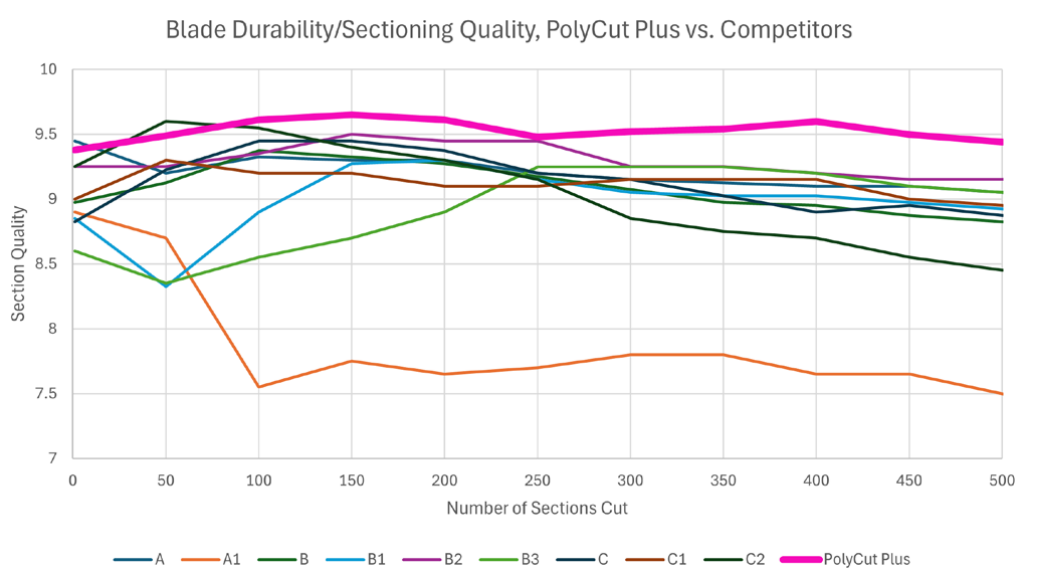

Robust testing was performed using the above criteria for PolyCut Plus blades to evaluate durability over time. Performance was compared against nine other commonly used market-leading blades that are designated for general purpose or hard tissue sectioning. Each blade was tested by cutting ribbons of 25 sections, with results recorded at 50 section intervals up to 500 sections, or until blade performance declined to unacceptable levels.

PolyCut Plus blades demonstrated exceptional consistency throughout testing, maintaining high-quality sectioning even as the number of cuts increased. Section quality often improved over time, highlighting the blade’s stability and precision. Most of the competing blades demonstrated initial sharpness and good section quality, but after repeated sectioning, the section quality started to deteriorate.

Results

PolyCut Plus blades maintained consistent high performance, attributed to its MicroCoat® enrichment technology, enhancing cutting efficiency. Combined with tight angle tolerances and advanced manufacturing precision, this design minimizes common sectioning defects like compression, chatter, and tearing, which are often caused by angle inconsistencies in standard blades. Durability testing confirmed that PolyCut Plus outperformed all other blades evaluated, sustaining optimal performance under strenuous testing.
Further validation with a scanning electron microscope (SEM) confirmed the integrity of the blade edge, with no visible nicks or defects, reinforcing reliability and manufacturing excellence of PolyCut Plus blades.

Visual Blade Comparison SEM Photography, 100X

Side View, Competitor Blade Magnification shows poor edge honing, defects, and nicks.	Side View, PolyCut Plus Blade Magnification shows proper edge honing and no nicks.

Top View, Competitor Blade Magnification shows improper coating and blade nicks.	Top View, PolyCut Plus Blade Magnification shows proper coating and no nicks.

Conclusion

PolyCut Plus blades deliver superior performance in microtomy due to their precise engineering and durable coating. The tight angle tolerance directly contributes to higher quality tissue sections, reducing defects and improving lab efficiency. Compared to other leading market blades, PolyCut Plus offers extended usability, reducing the frequency of blade changes and associated downtime while maintaining high consistency for up to 500 sections. These blades represent a significant innovation in microtome blade design, aligning with the lab’s need for accuracy, efficiency, and reliability in tissue sectioning to provide the best patient care possible.

Customer Feedback

“They are the best blades I have ever used. We have used the same blade for almost 10 years, and we’ve tried other blades from other places, and none of them worked as well until these (PolyCut Plus). These blades are amazing.” - Tiffany, SSM St. Anthony

“The blades are smooth. Never any nicks as we start using them. Some blades have lots of nicks and defects from the packs and are trash from the start. There is also no jamming from the package when releasing them.” - Andrea, MLD

“Smoother cutting, great sections!” - Alana, Regional Urology Lab

“Much better than our current blade, and more durable with skin tissue” - Krystina, Regional Reference Lab

“Consistent ribboning, long lasting blade”- Linda, Specialty Reference Lab

“Very smooth sectioning, easier to cut with” - Ben, Urology Group
